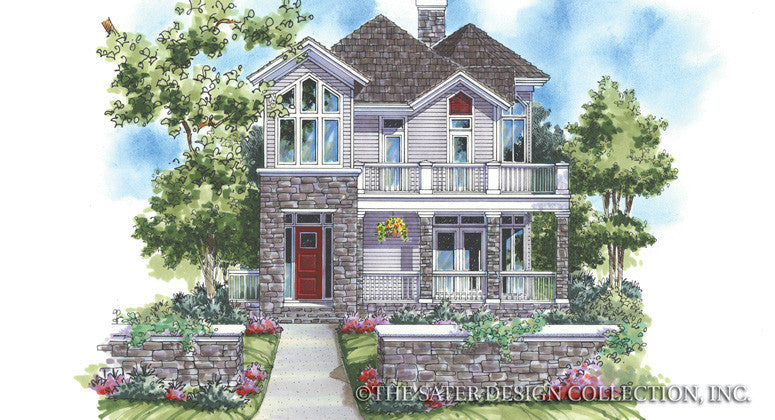

New Waterford-Front Elevation-Plan #6829

2590 SQFT
3 BED
2 BATH
1 HALF-BATH

New Waterford House Plan

HOME PLAN 6829

2590 SQFT
3 BED
2 BATH
CAR GARAGE

Photographed homes may have been modified from original plan

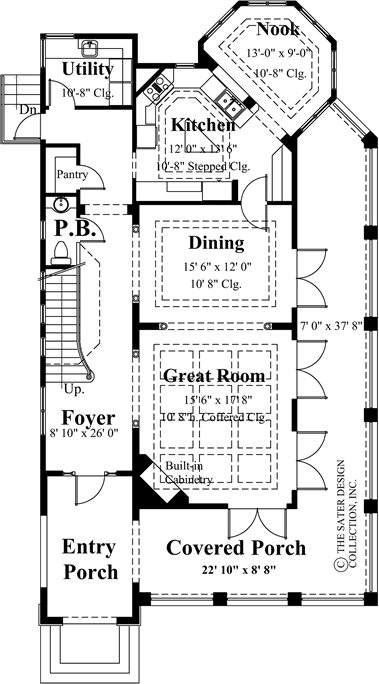

Main Level

Upper Floor

House Plan Description

The New Waterford is a beautiful mountain style house plan. Tall windows and two wraparound porches bestow spectacular views across the front of this rustic hideaway, perfect for any region. A beam coffered ceiling highlights the great room, creating a pleasing mix of style and warmth to the New Waterford plan.

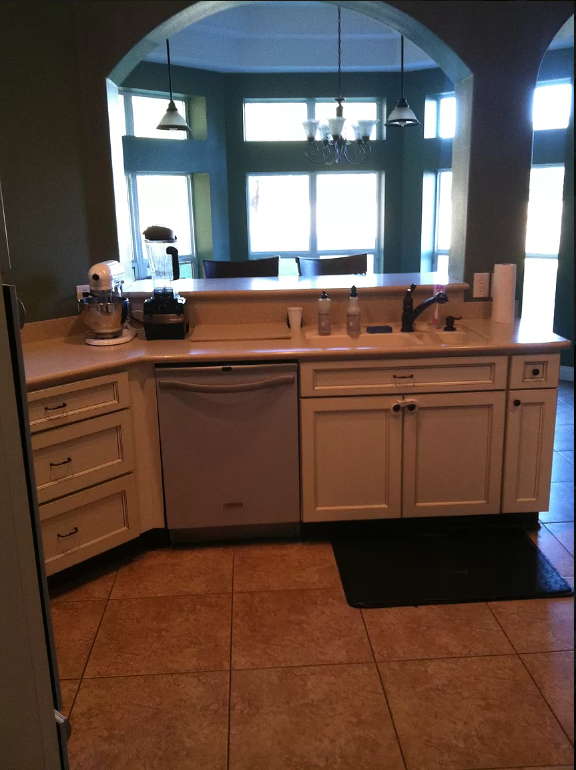

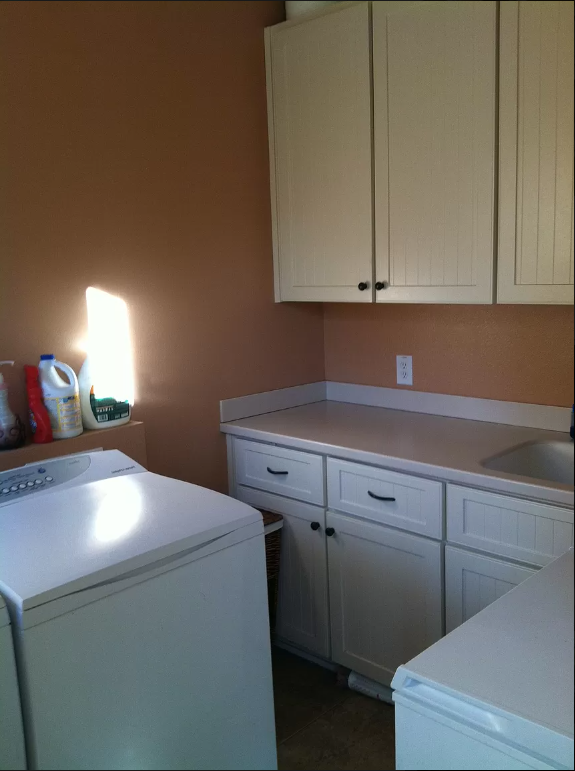

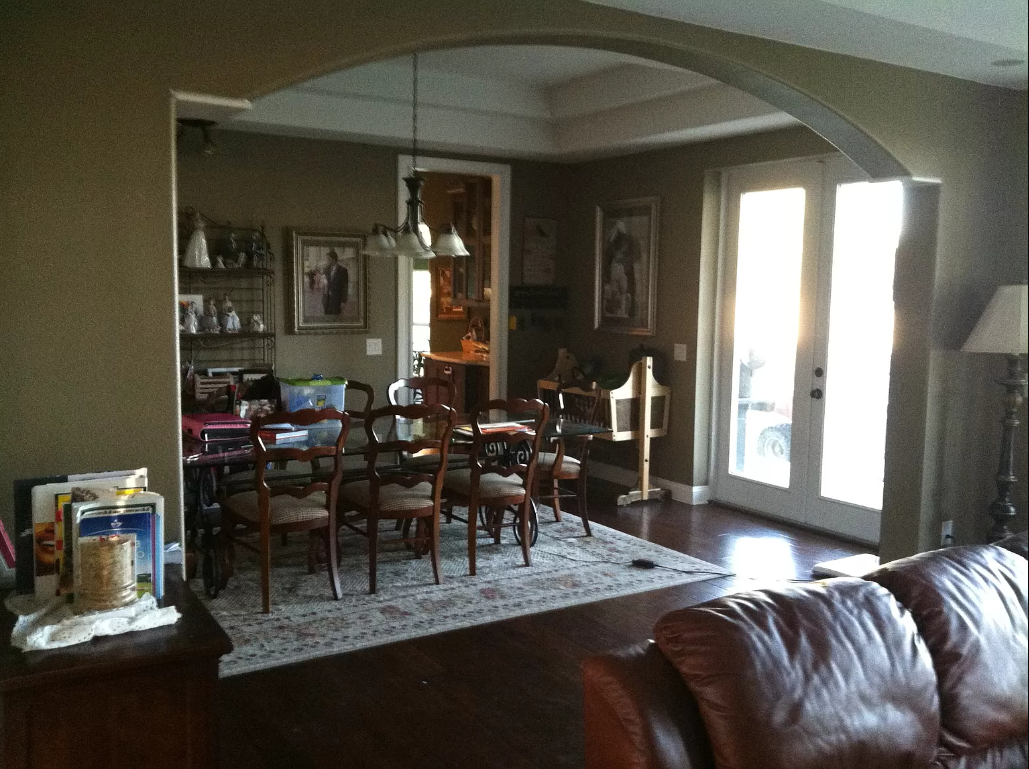

The kitchen, dining room and breakfast nook of the New Waterford plan provide the open concept that is so desirable. The kitchen has a large walk in pantry and there is a triangular center island that offers additional counter space. French doors in the dining room open out to the wraparound porch while two sets of French doors in the great room also open to the porch. The utility room and powder bath round out the lower level.

The second story offers a study with a lovely stepped ceiling. Two additional bedrooms share a Jack and Jill bath. Each room has access to the deck. There is a quaint loft that is a perfect spot for a computer desk or sitting area.

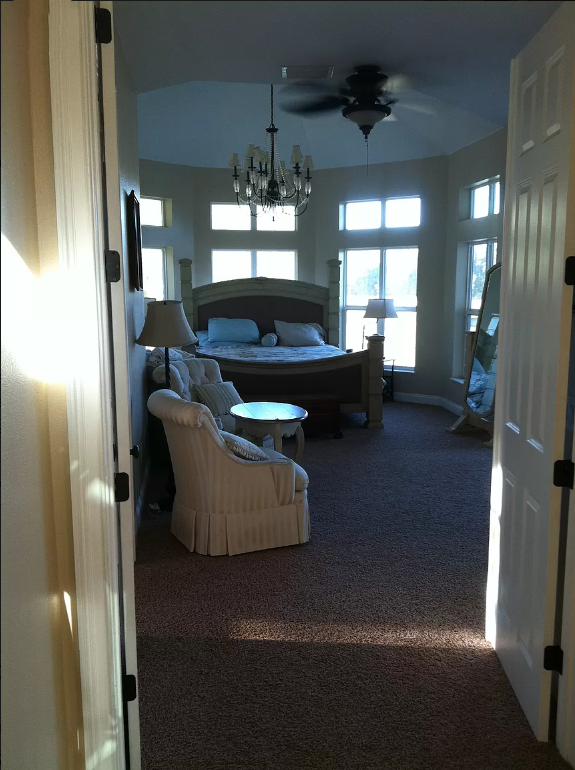

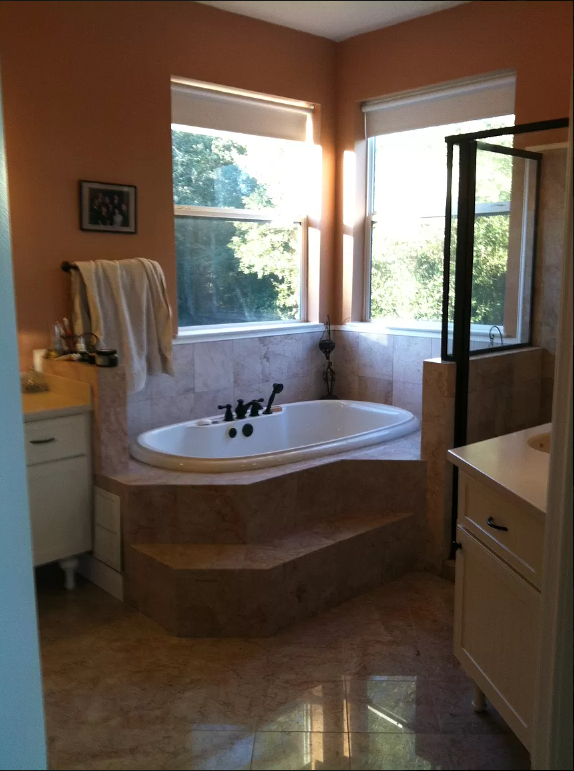

The master retreat, also on the second floor, is located at the rear of the New Waterford plan.The master bedroom has a sitting area with a spectacular octagonal vaulted ceiling with windows all the way around. The master bedroom has French doors leading out to the upper deck. The large walk in closet is perfect for both owners. The master bath has a luxurious corner Whirlpool soaking tub and a separate walk in shower.

This beautiful mountain style house plan, the New Waterford, has 2590 square feet of living area, three bedrooms and two and 1/2 bathrooms.A slab/stem wall foundation completes this plan.

Are you interested in having a custom home plan designed just for you? Then please visit Sater Group, Inc and learn how we can design the home of your dreams.

New Waterford House Plan

HOME PLAN 6829

PLAN SPECS

Total Living	2590 Sq. Ft.
1st Floor	1266 sq. ft.
2nd Floor	1324 sq. ft.
Bedrooms	3
Bathrooms	2
Half Bathrooms	1
Width of House	34 ft. 0 in.
Depth of House	63 ft. 2 in.
Foundation	Slab/Stem Wall
Exterior Wall	Wood 2x6
Deck Sq. Ft.	550 sq. ft.
Entry Sq. Ft.	150 sq. ft.
Porch Patio Sq. Ft.	550 sq. ft.
Total Sq. Ft.	3840 Sq. Ft.
Building Height	34 ft. 6 in.
Roof Pitch	8/12
Fire Place	No
Great Room	Yes
His and Hers Closets	Yes
Sitting Area Master Suite	Yes
Walk-in Pantry	Yes

Is this plan almost exactly the plan of your dreams? Sater Design can make it reality!

MODIFY THIS PLAN

What Plan Format Should I Order?

At Sater Design, we’re all about creating your dream home and making the process as easy as possible for you. Therefore, the plan format you select will depend on your situation. For your convenience, we sell our plans in 3 basic plan formats: printed on Vellum paper, in electronic PDF file format, and electronic AutoCAD files. AutoCAD is the name of the program that is used to create the plans. There is no “correct” or “better” plan format, it all depends on your individual needs. Each plan format has its benefits and some are more versatile than others.

Print Vellum: The most popular plan format our customers order is the Print-Vellum format. This plan format gives you a set of plans printed on Vellum paper that you can show your builder. Copies can be made as needed– see the Plan Licensing Information page for more details. The Vellum paper is erasable (using a special architect’s eraser) so added notes or minor changes can be made to the plans if needed. The Vellum plan format is the most expensive to ship.

PDF Electronic: The second most popular plan format is PDF, which is an electronic file format. We email you the plan as a set of electronic PDF files. This plan format provides the most expedient way to receive the plans. Your local blue print shop can make prints as needed. Again, see the Plan Licensing Information page for more details on making copies. The PDF plan format is an electronic file, but it is not editable so changes can be more difficult to make.

CAD Electronic: If you need to make changes or alterations to the plan, you will need to order the plan in electronic AutoCAD plan format. Anyone with the AutoCAD program and knowledge of how to use it — which most builders do –will be able to open the files and make changes to them. Your builder or local blue print shop can make prints from the AutoCAD files (see the Plan Licensing Information page for more details). There AutoCAD files come on a USB flash drive and is shipped with your plan licensing information packet.
