Mansfield House Plan

3718 sq. ft. Total Living  |   4 Bedrooms  |  5 Full Baths
Select to Purchase
Add to Wishlist

Want to Modify This Plan?

Click here to fill out a Modification Application.

We are experiencing an extremely high volume of modifications. We are working as fast as we can, however the time frame for modifications has been extended to a minimum of 10 weeks. At this time, we cannot guarantee any special time-frames. We apologize for the inconvenience.

Plan Options can increase the time it takes to process the house plans for delivery. If you have any questions, please contact us.

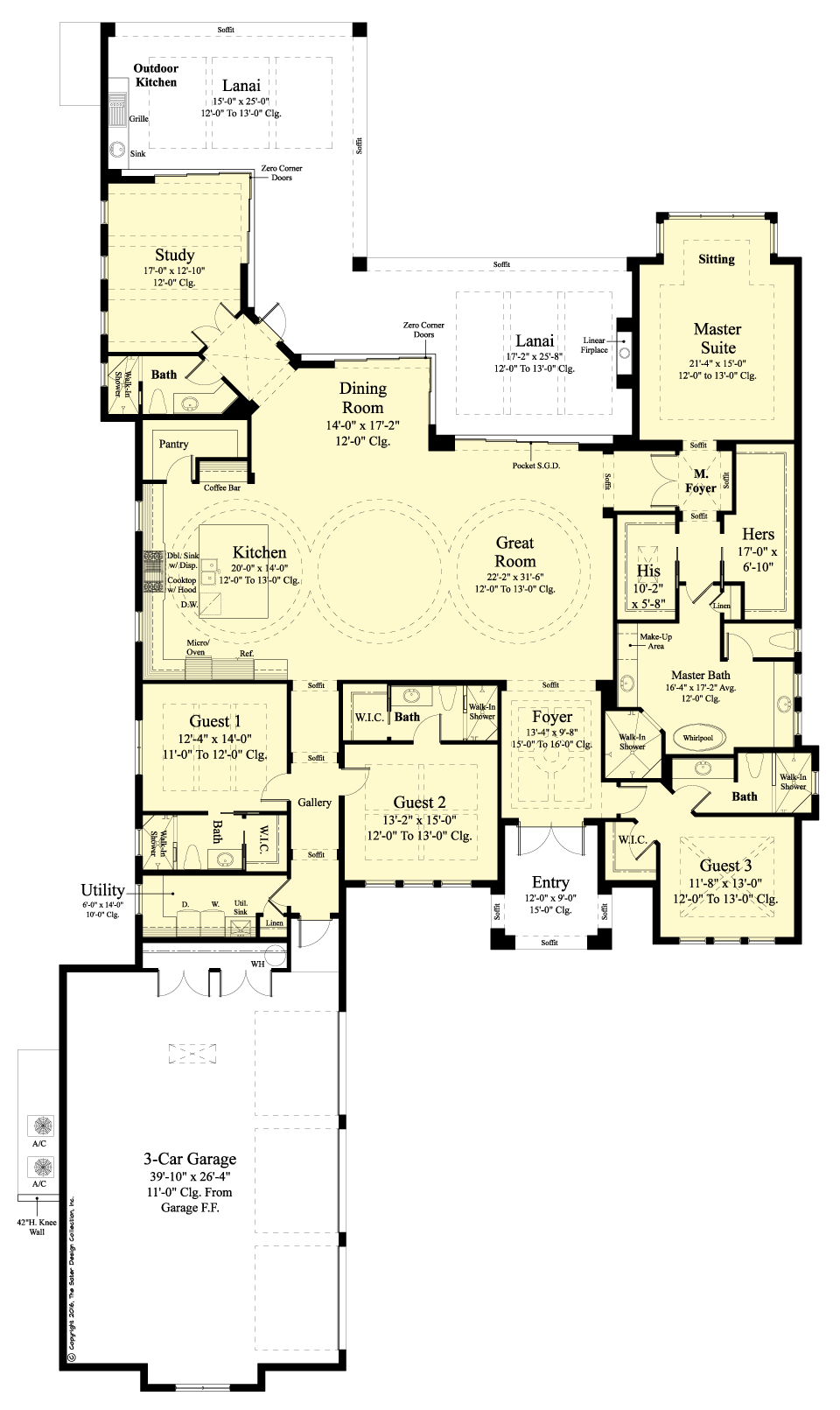

Main Level

House Plan Specifications

  • Total Living:  3718 sq. ft.
  • 1st Floor:  3718 sq. ft.
  • Bedrooms:  4
  • Bathrooms:  5
  • Width of House:  73 ft. 4 in.
  • Depth of House:  132 ft. 2 in.
  • Foundation:  Monolithic Slab
  • Exterior Wall:  Block
  • Stories:  1
  • Roof Pitch:  7/12
  • Garage Bays:  3
  • Garage Load:  Side/Swing
  • Garage:  1165 sq. ft.
  • Entry:  126 sq. ft.
  • Lanai:  981 sq. ft.
  • Total Area:  5990 sq. ft.
  • Building Height:  30 ft. 1 in.
  • House Plan Features:

  • Built-in Grill
  • Great Room
  • His and Hers Closets
  • Master Suite Main Floor
  • Master Suite Sitting Area
  • Office / Study
  • Outdoor Fireplace
  • Outdoor Kitchen
  • Walk-in Pantry

What is in a Set of Plans?

Find out what we include in a set of house plans.

All Plans Need Engineering

Our plans do not include engineering for any specific site. Because of the great differences in geography and climate, each state, or municipality may have its own building regulations. Your plans will likely need site specific engineering in order to comply with those local requirements, therefore, we always recommend that you have the plans reviewed by a local structural engineer for compliance.

House Plan Description

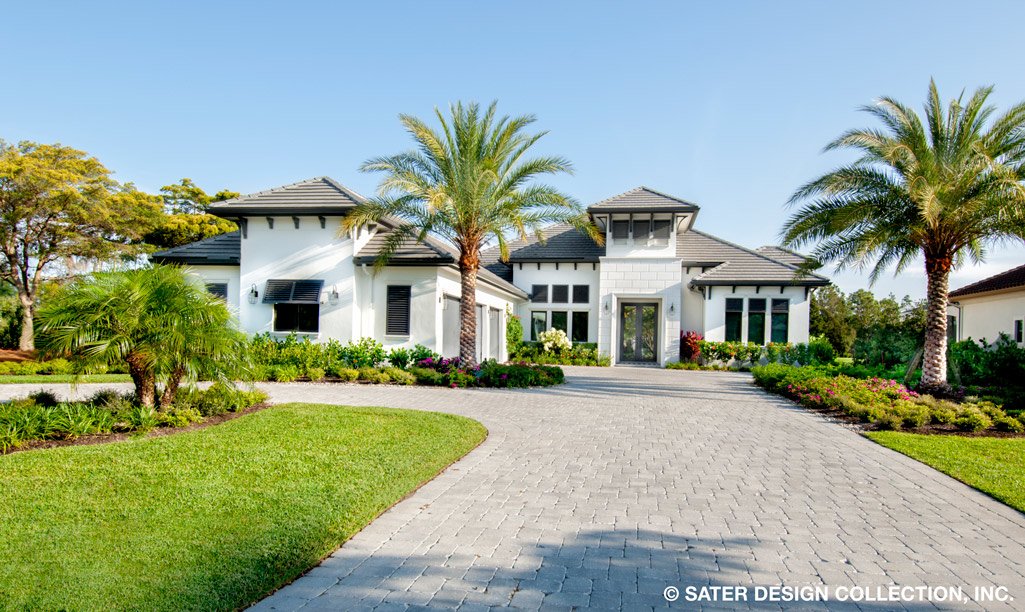

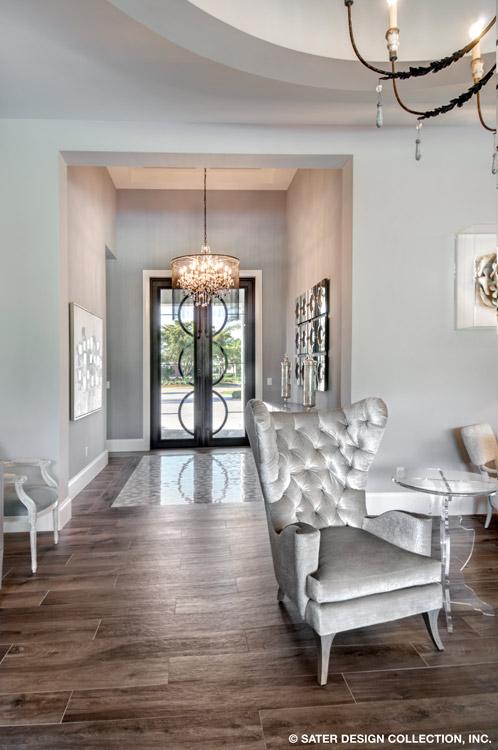

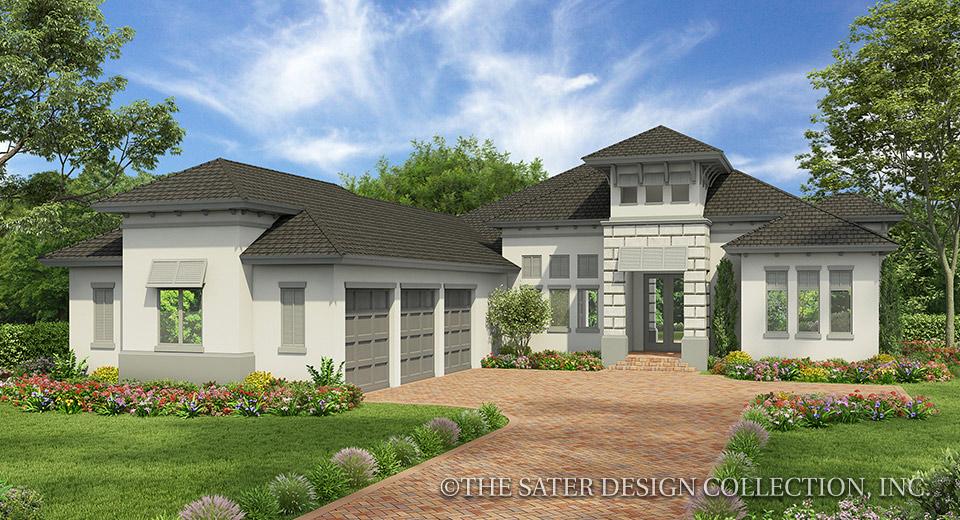

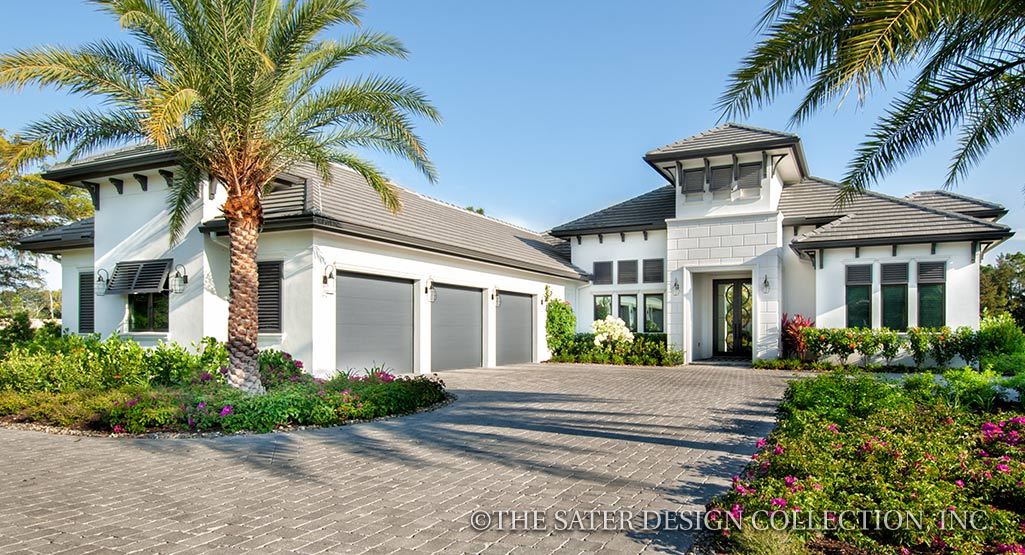

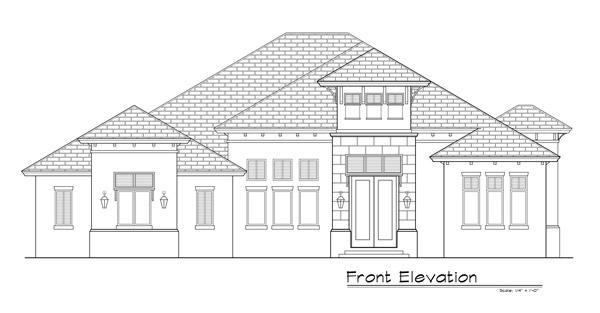

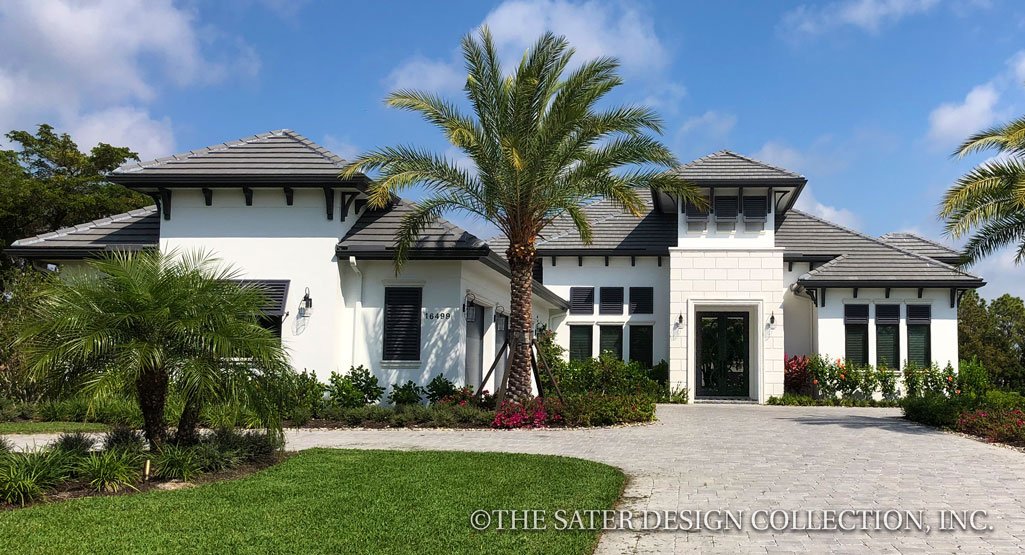

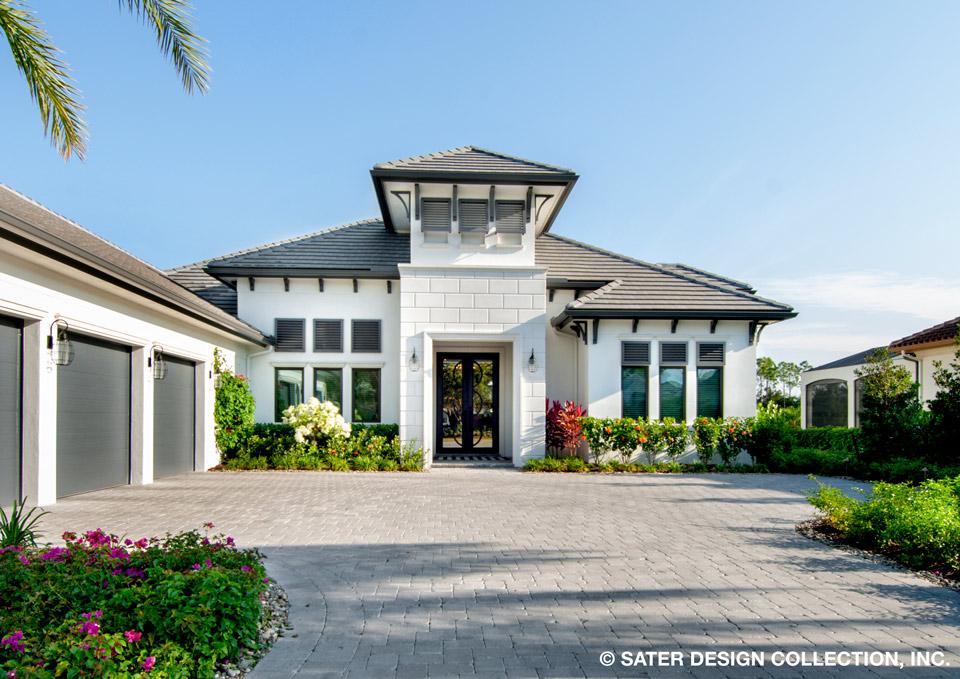

The Mansfield is a stunning contemporary, West-Indies style home plan. The tall entry welcomes homeowners and guests. Shutter detailing stands out against the simple exterior stucco. A flat concrete tile roof completes the home.

Inside, the floor plan boasts four bedrooms and five full bathrooms in its 3718 living square feet. Intricate ceiling designs flow through the entire home, from the foyer to the lanai. Every detail has been thought of.

The front of the Mansfield house plan houses the three guest suites. One is located off the home’s foyer and the other two have an entrance off the gallery. All three are complete with private bathrooms and walk-in closets. Also off the gallery is a spacious utility room.

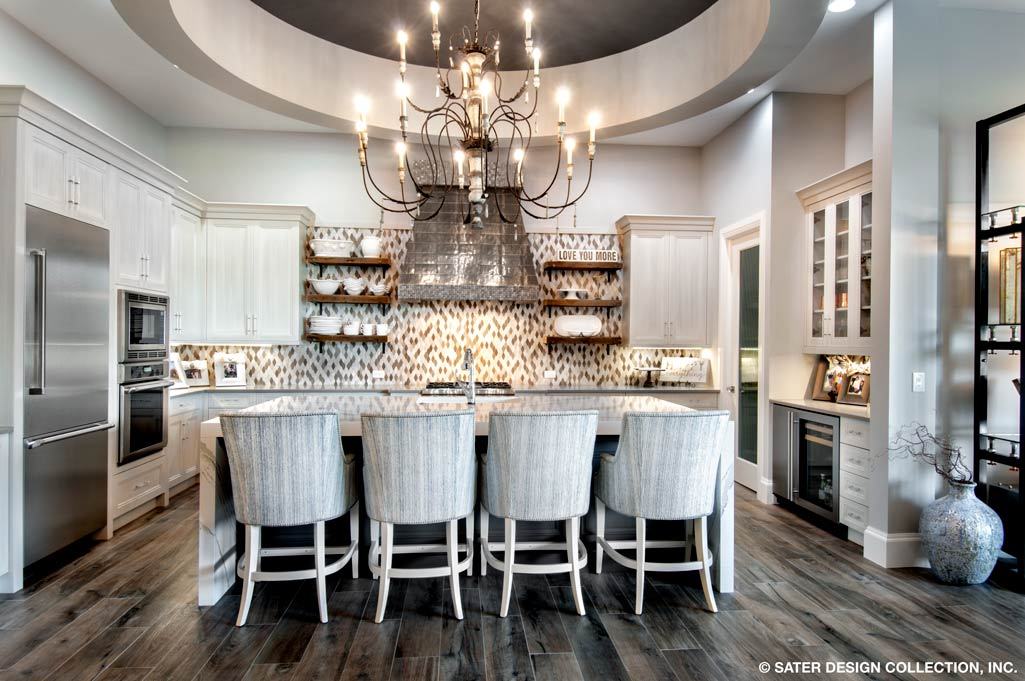

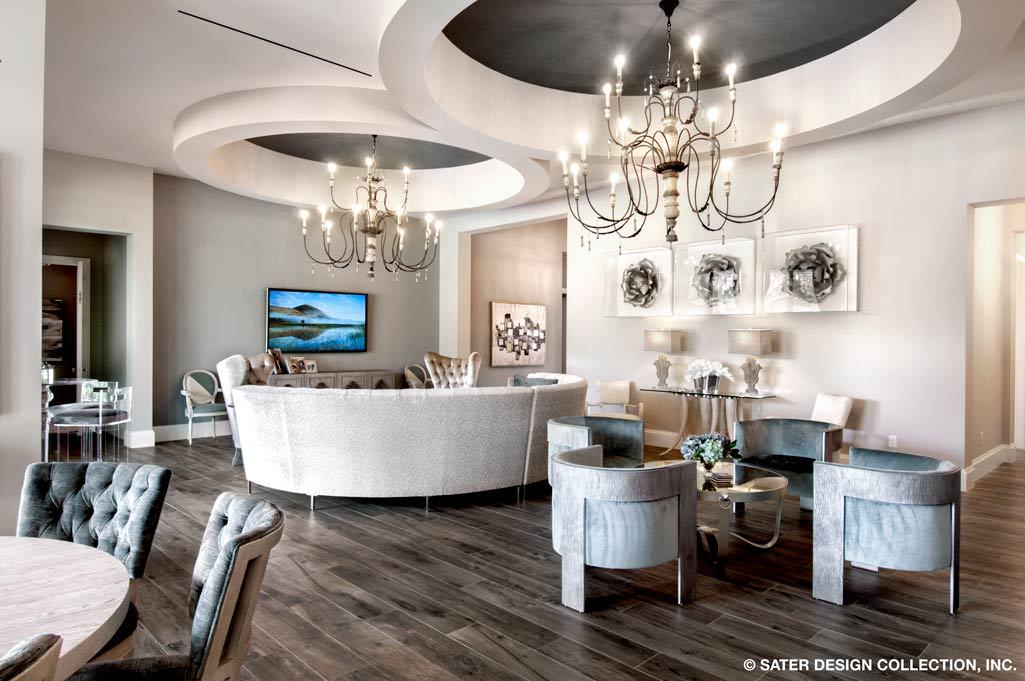

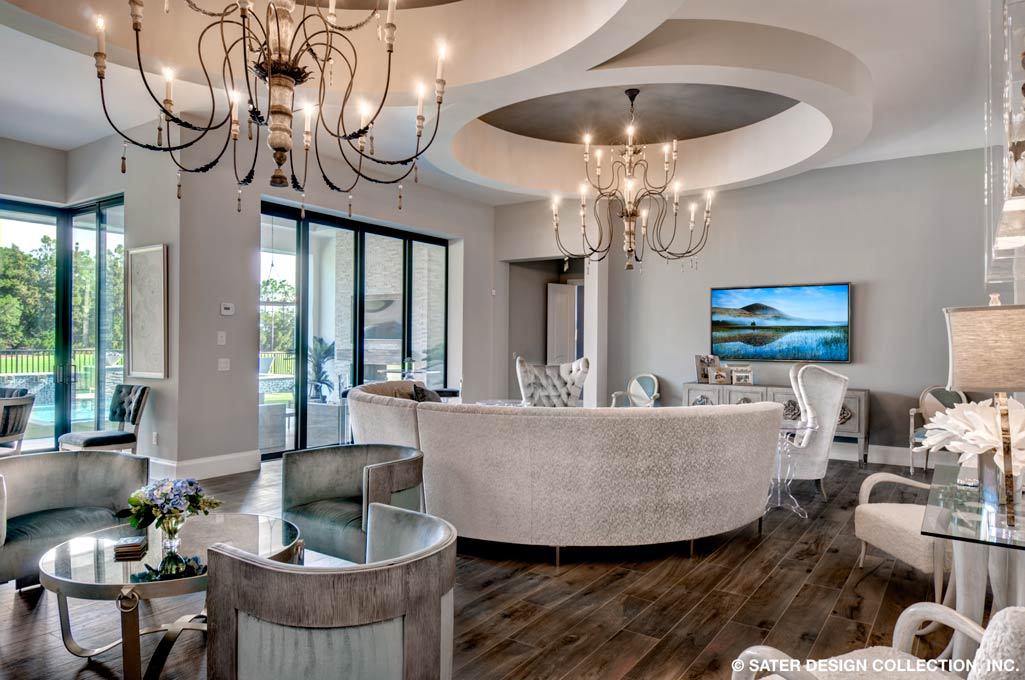

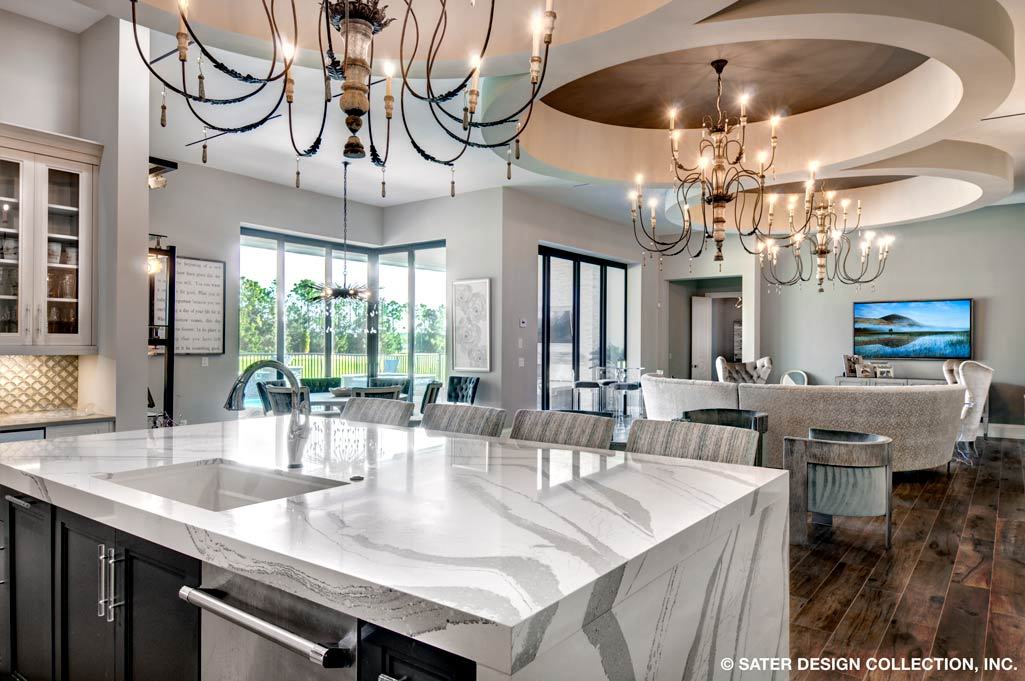

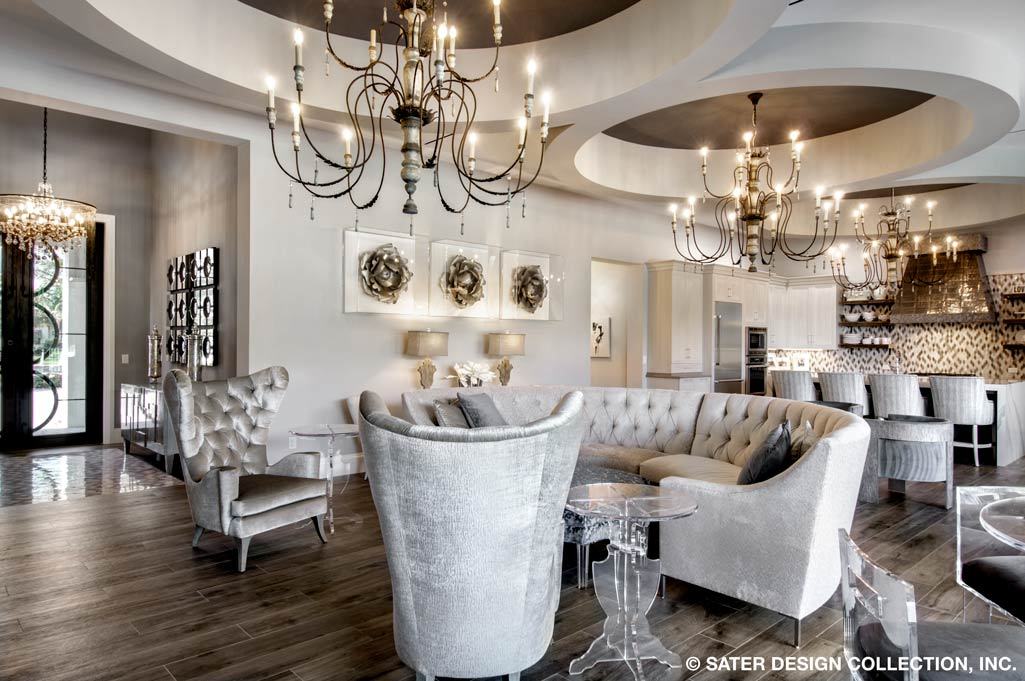

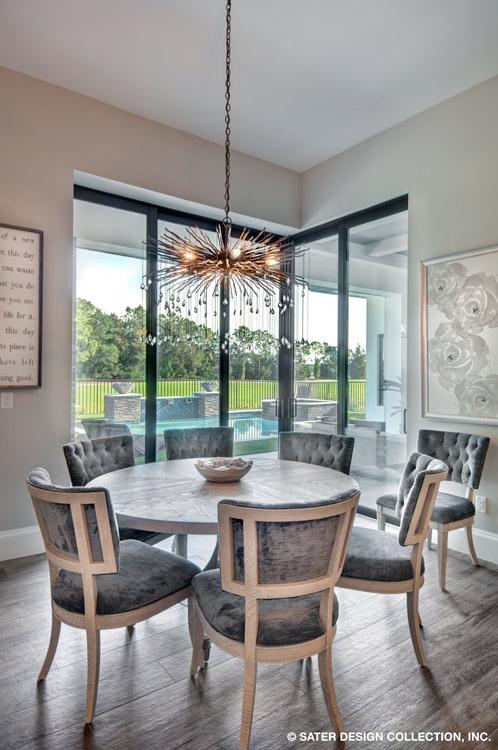

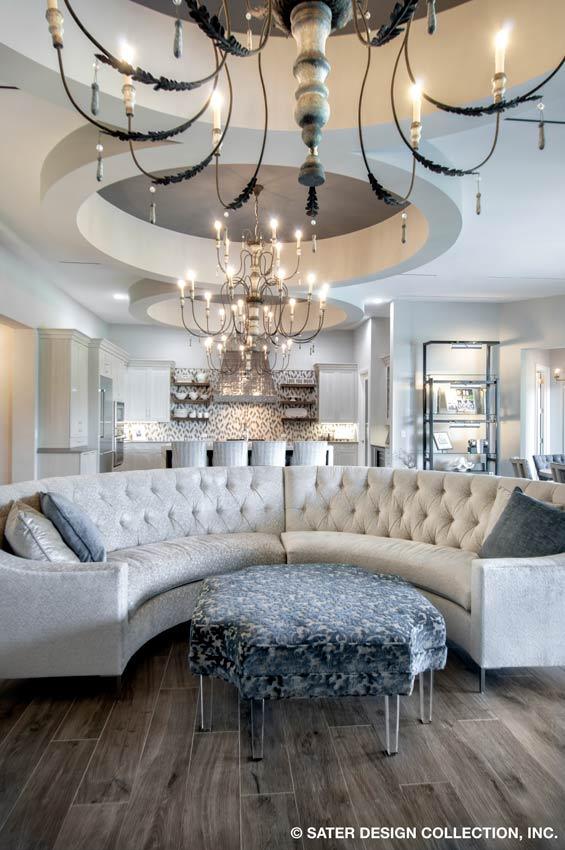

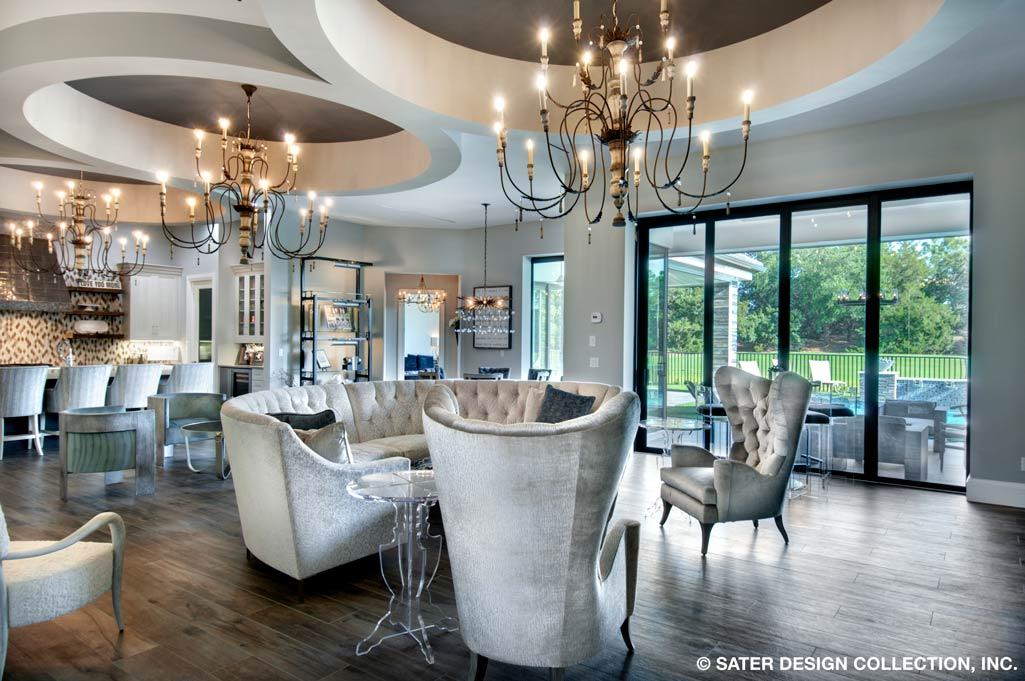

The center of the home is the nucleus. The kitchen opens to the great room and dining room. It offers an abundance of counter space and storage, as well as an oversized pantry and center island. And let’s not forget the convenient coffee bar! Sliding glass doors open the great room and dining room to the rear lanai. Off the dining room is a study and guest bath. The study has zero corner sliding glass doors which makes the room completely open to the outside.

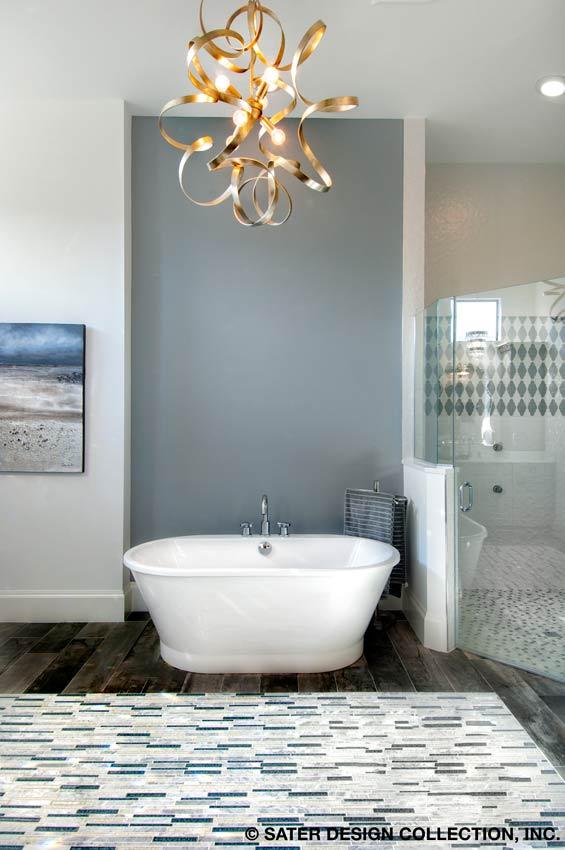

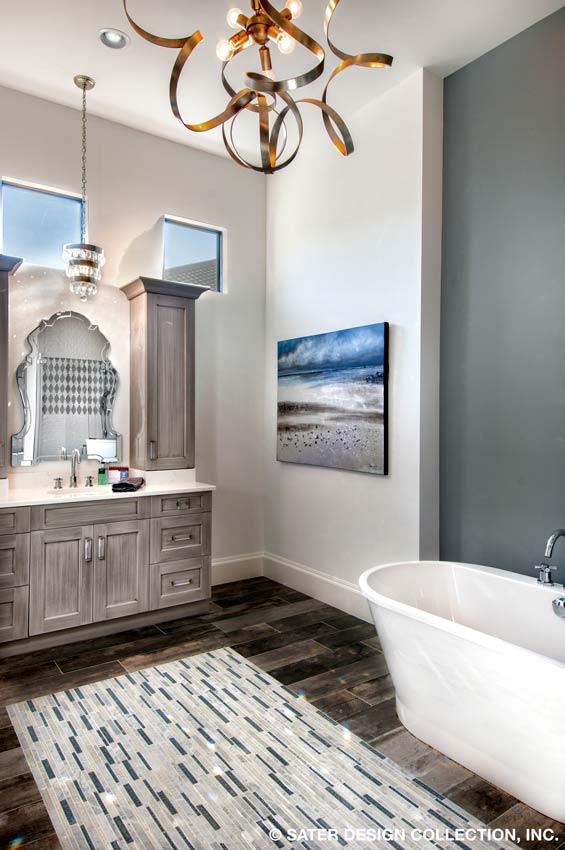

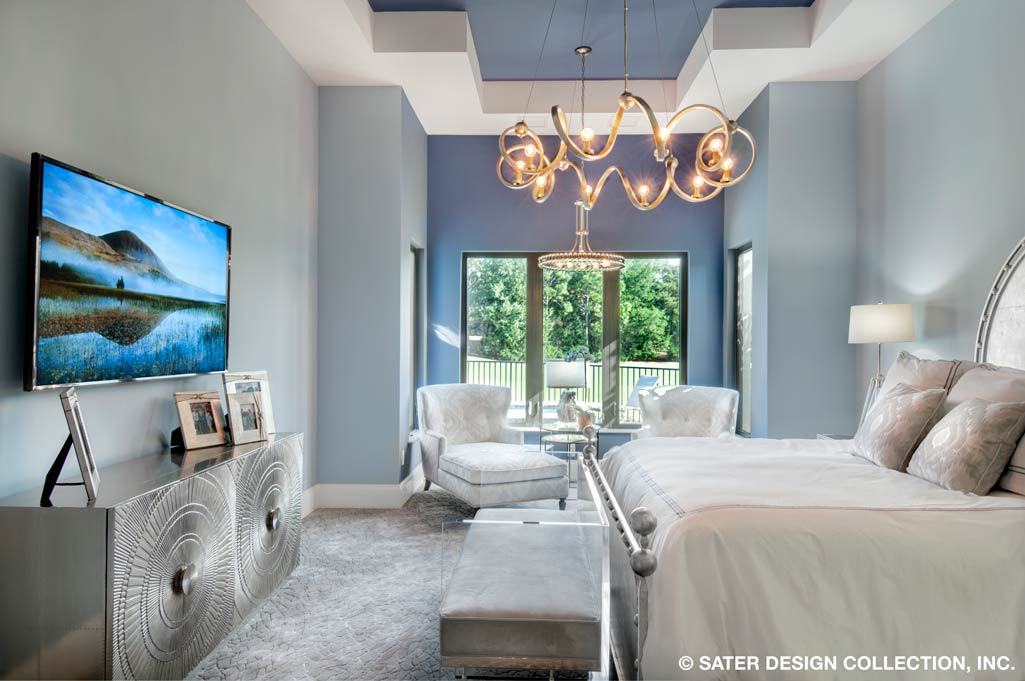

The majority of the right side is devoted to the luxurious master suite. The master foyer leads to the bedroom and sitting area on the left and his and her closets and the bathroom on the right. The generous master bath offers extra-long vanities, a freestanding tub and a two-person walk-in shower.

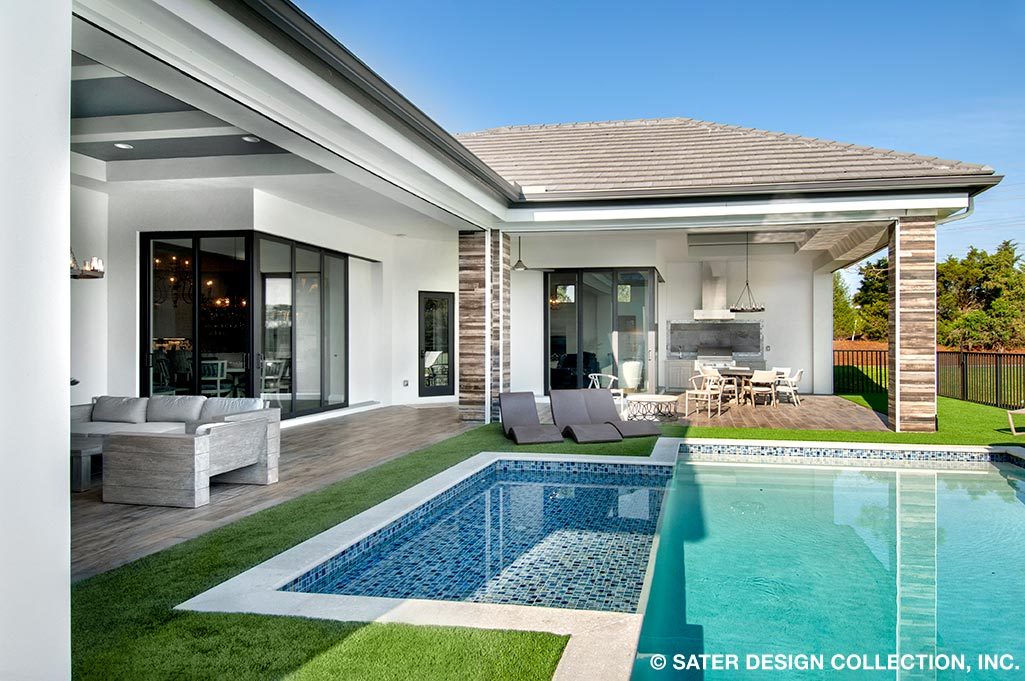

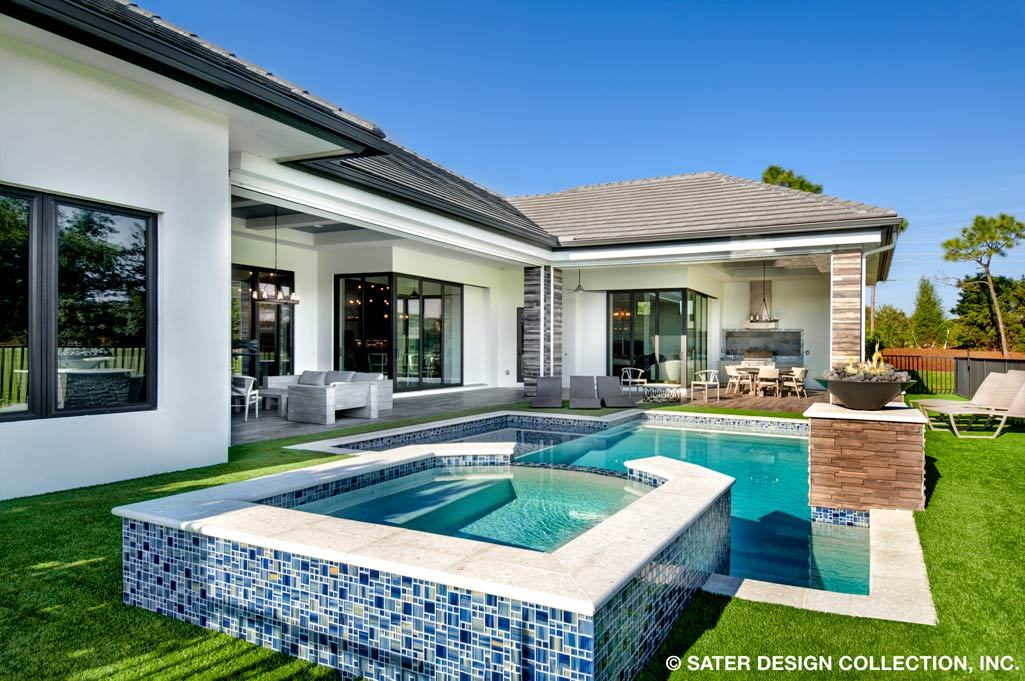

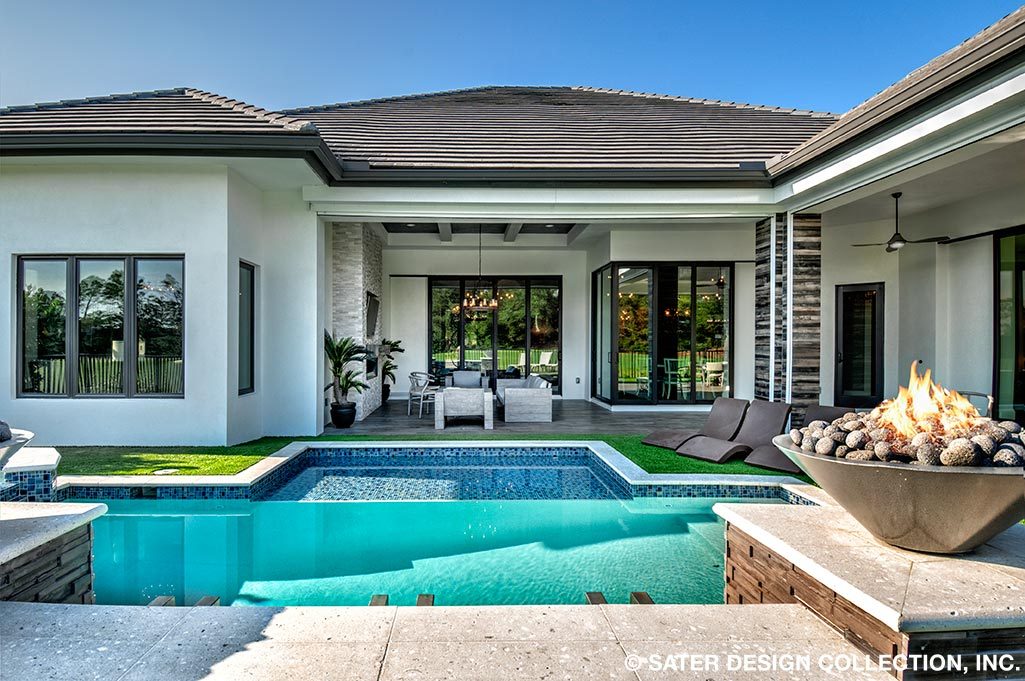

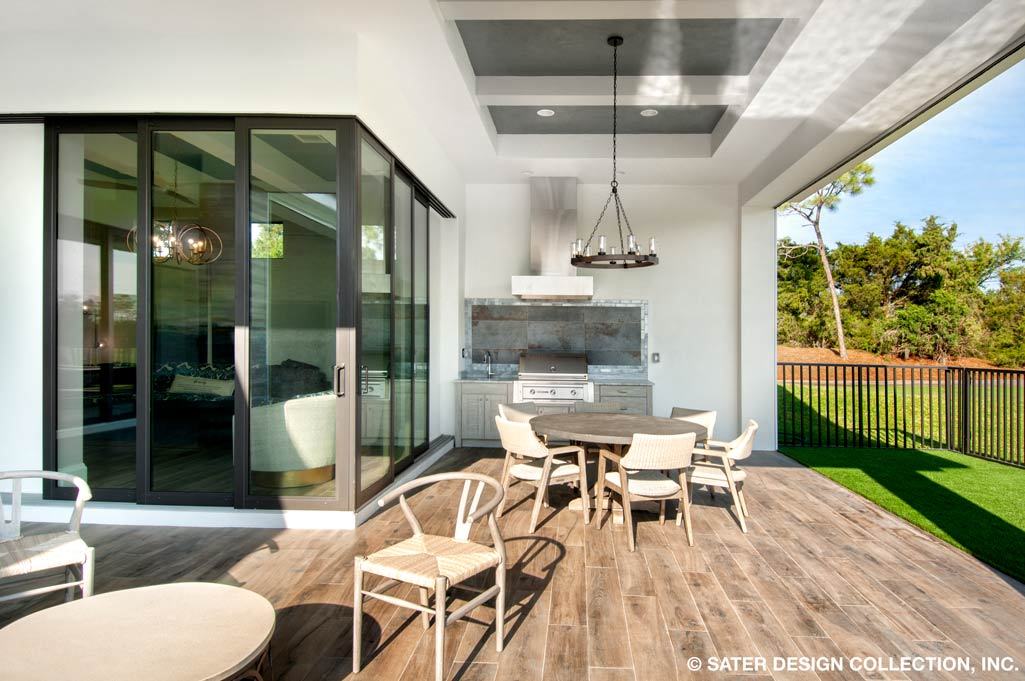

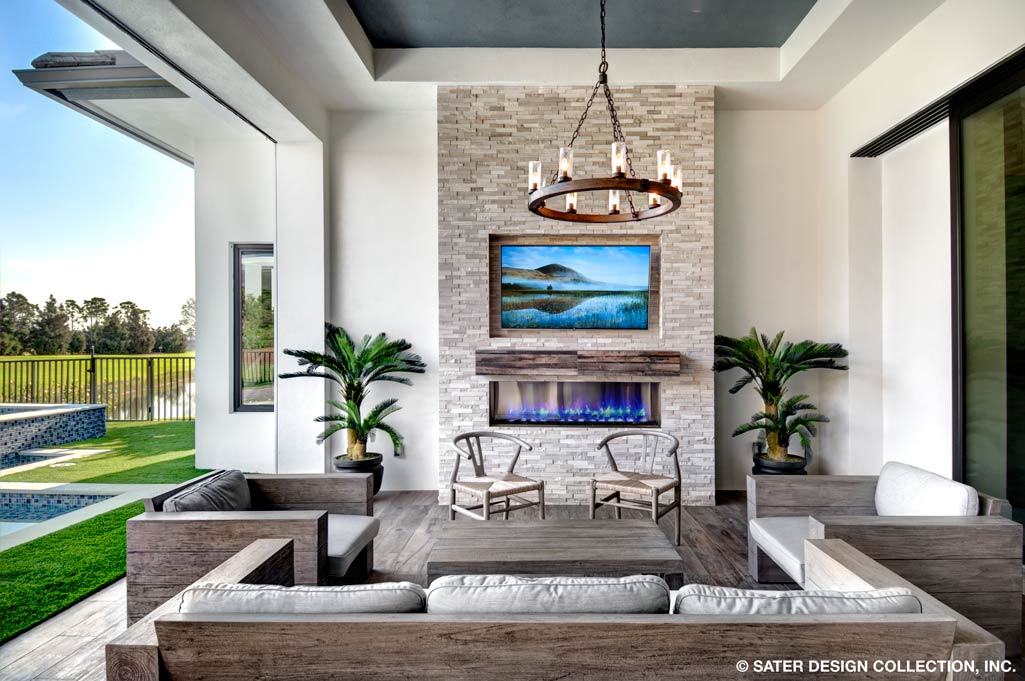

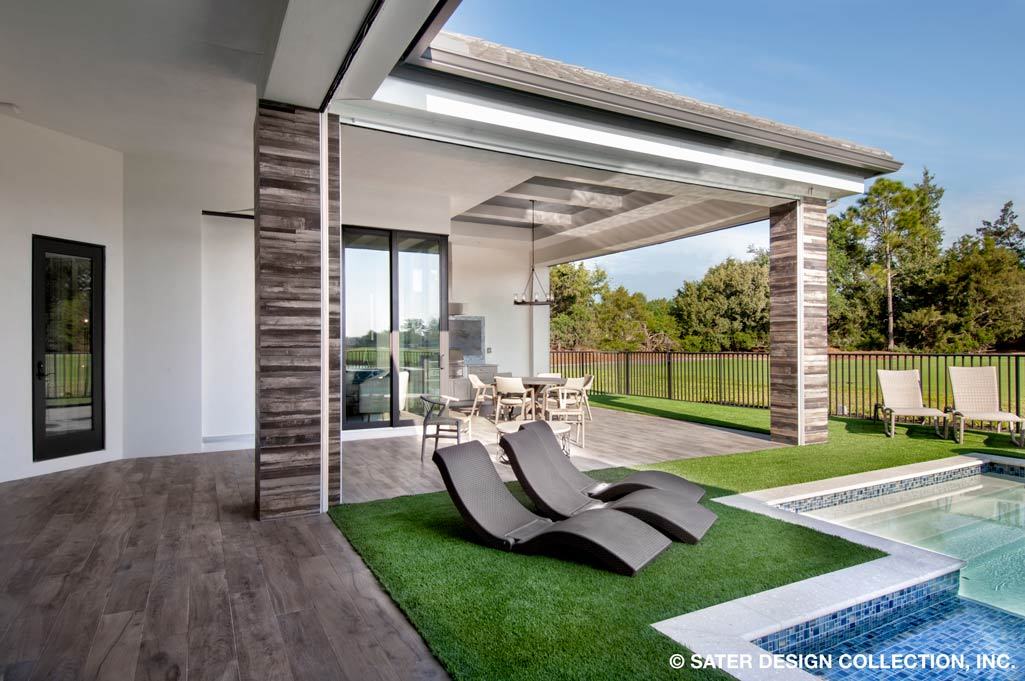

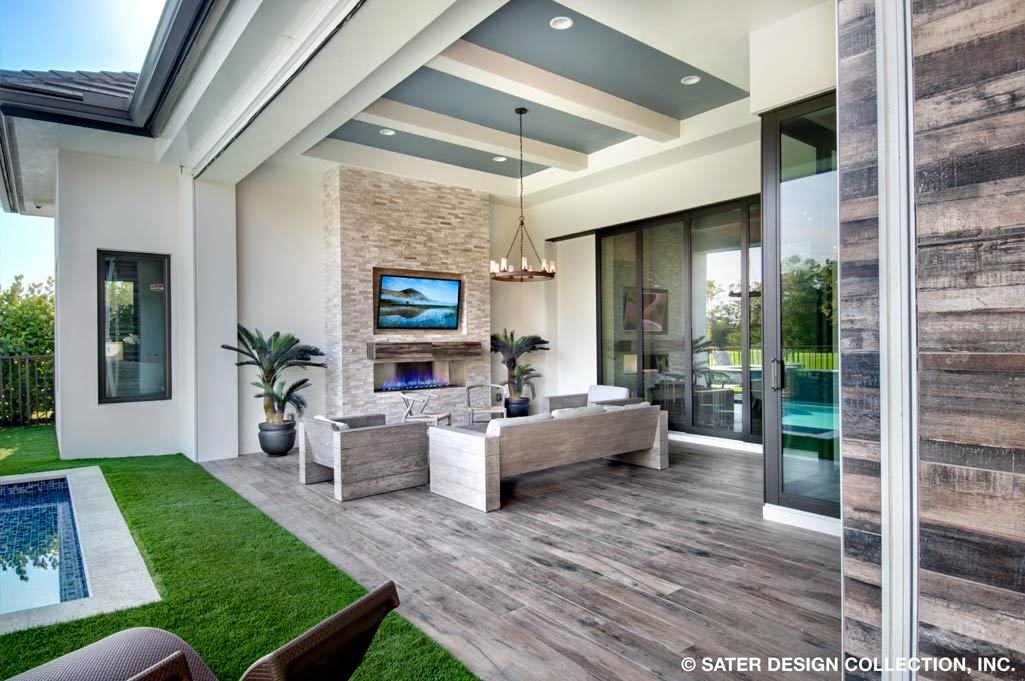

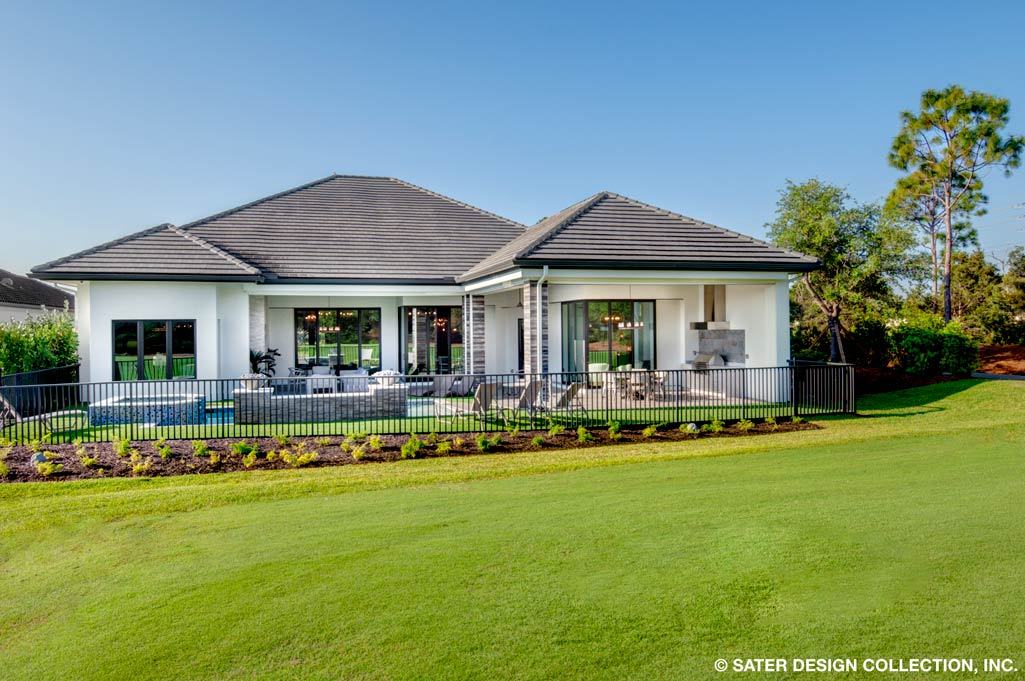

The Mansfield floor plan offers wonderful outdoor living. Two lanais are connected. They feature a linear fireplace and an outdoor kitchen.

Are you interest in having a custom home plan designed just for you? Then please visit the Sater Group, Inc. and learn how we can design something just for you.
