Capella Place House Plan

5507 sq. ft.

Total Living






Plan Options can increase the time it takes to process the house plans for delivery. If you have any questions, please contact us.

What is in a Set of Plans?

Find out what we include in a set of house plans.

All Plans Need Engineering

Our plans do not include engineering for any specific site. Because of the great differences in geography and climate, each state, or municipality may have its own building regulations. Your plans will likely need site specific engineering in order to comply with those local requirements, therefore, we always recommend that you have the plans reviewed by a local structural engineer for compliance.

House Plan Details:

  • Total Living:  5507 sq. ft.
  • 1st Floor:  2200 sq. ft.
  • 2nd Floor:  1914 sq. ft.
  • 3rd Floor:  1393 sq. ft.
  • Bedrooms:  3
  • Bathrooms:  3
  • Half Baths:  1
  • Width of House:  50 ft. 4 in.
  • Depth of House:  98 ft. 10 in.
  • Foundation:  Crawl Space
  • Exterior Wall:  Wood 2x6
  • Stories:  3
  • Garage Bays:  2
  • Garage Load:  Rear
  • Balcony:  304 sq. ft.
  • Deck:  124 sq. ft.
  • Garage:  557 sq. ft.
  • Lower Level Porch:  429 sq. ft.
  • Porch Patio:  304 sq. ft.
  • Sun Deck:  429 sq. ft.
  • Total Area:  8426 sq. ft.
  • Building Height:  39 ft. 4 in.
  • House Plan Features:

  • Elevator
  • Fireplace
  • His and Hers Closets
  • Media Room
  • Outdoor Fireplace
  • Separate Guest Suite
  • Wet Bar

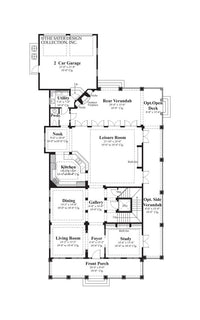

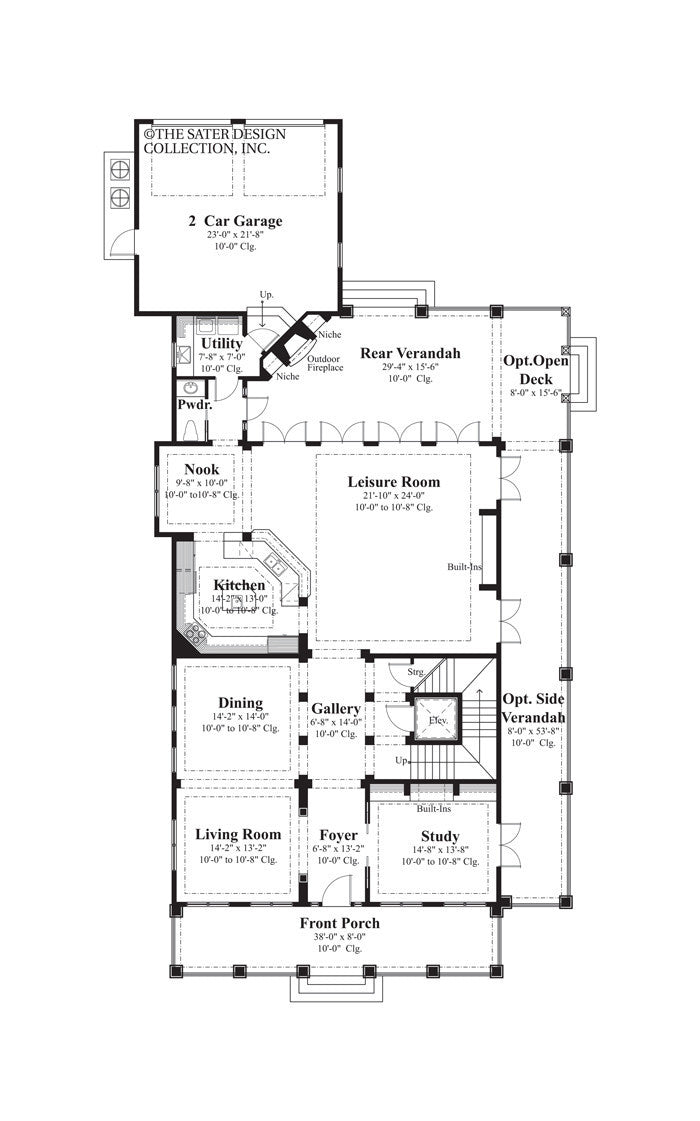

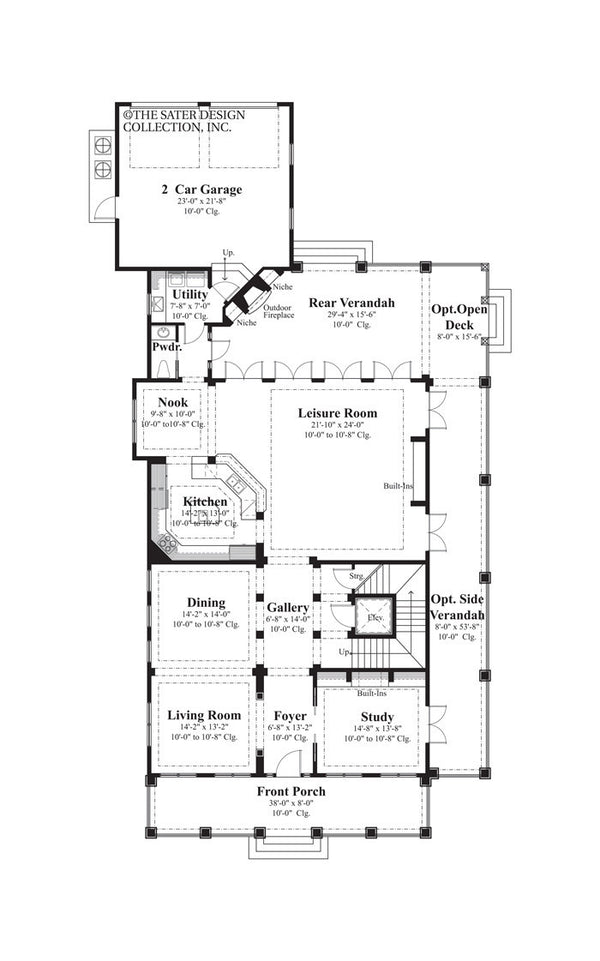

The Capella Place is a lovely Southern plantation style home plan. It features both traditional formal rooms near the entryway and an expansive family living space toward the rear. The dining room, study and living room of the Capella Place are located off of the gallery hallway. To the right of the dining room is the elevator and staircase. The kitchen is overlooking the leisure room and breakfast nook. There is an island in the center of the kitchen. An eating bar offers additional seating around the room. The breakfast nook opens to the powder room and utility room. The utility room is large enough to accommodate a wash tub and folding table as well as the washer and dryer. The leisure room melds with the kitchen, dining nook and verandah to enhance casual living. Four sets of French doors open to the rear verandah from the leisure room. There is a side verandah extending the entire depth of the Capella Place plan. Three sets of French doors open up to the side verandah. The stairs lead up to the loft. Two secondary bedrooms each have their own full bath on the second level. Each bedroom opens up to the front balcony with two sets of French doors.

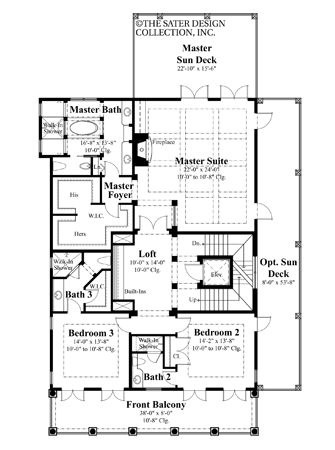

The upstairs is shared with the master retreat. The luxurious master bedroom has a coffered ceiling. The two sets of French doors open to a private rear sun deck and side sun deck. The cozy fireplace warms the entire room. The master foyer leads to the expansive walk in closet. It is large enough for both owners. The lavish master bath has double sinks and an oval soaking tub in the center. There is also a large walk in shower. The third floor of the Capella Place home plan has a fourth guest bathroom. There is a gallery and a club room with a wet bar. The club room can easily be converted into a media or theater room. The Capella Place house plan has 5470 square feet of living area. This house plan sits on a crawlspace foundation.

Are you interested in a having a custom home plan designed just for you? Then please visit Sater Group, Inc. and learn how we can design something just for you.
