Belvedere House Plan

2419 sq. ft.

Total Living






Plan Options can increase the time it takes to process the house plans for delivery. If you have any questions, please contact us.

What is in a Set of Plans?

Find out what we include in a set of house plans.

All Plans Need Engineering

Our plans do not include engineering for any specific site. Because of the great differences in geography and climate, each state, or municipality may have its own building regulations. Your plans will likely need site specific engineering in order to comply with those local requirements, therefore, we always recommend that you have the plans reviewed by a local structural engineer for compliance.

Photographed homes may have been modified from original plan.

House Plan Details:

  • Total Living:  2419 sq. ft.
  • 1st Floor:  1879 sq. ft.
  • 2nd Floor:  540 sq. ft.
  • Bedrooms:  3
  • Bathrooms:  3
  • Width of House:  50 ft. 8 in.
  • Depth of House:  90 ft. 4 in.
  • Foundation:  Stem Wall Slab
  • Exterior Wall:  Wood 2x6
  • Stories:  2
  • Roof Pitch:  6/12
  • Garage Bays:  2
  • Garage Load:  Side/Swing
  • Balcony:  48 sq. ft.
  • Courtyard:  444 sq. ft.
  • Deck:  166 sq. ft.
  • Garage:  673 sq. ft.
  • Master Courtyard:  266 sq. ft.
  • Portico:  106 sq. ft.
  • Veranda:  549 sq. ft.
  • Total Area:  4671 sq. ft.
  • Building Height:  27 ft. 5 in.
  • House Plan Features:

  • Fireplace
  • Great Room
  • Master Suite Main Floor
  • Walk-in Pantry

Our Belvedere house plan is a Contemporary Courtyard design. Its stucco facade offers straight lines and a modern metal roof. The original sketches for this floor plan were created several years ago. Dan Sater’s daughter wanted him to sketch her “dream home” at the time. The Belvedere plan is the final result of that original sketch. Her vision was to have a courtyard home without a separate cabana, as she was dreaming of the safety of future children.

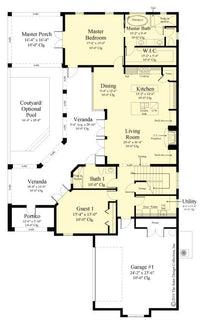

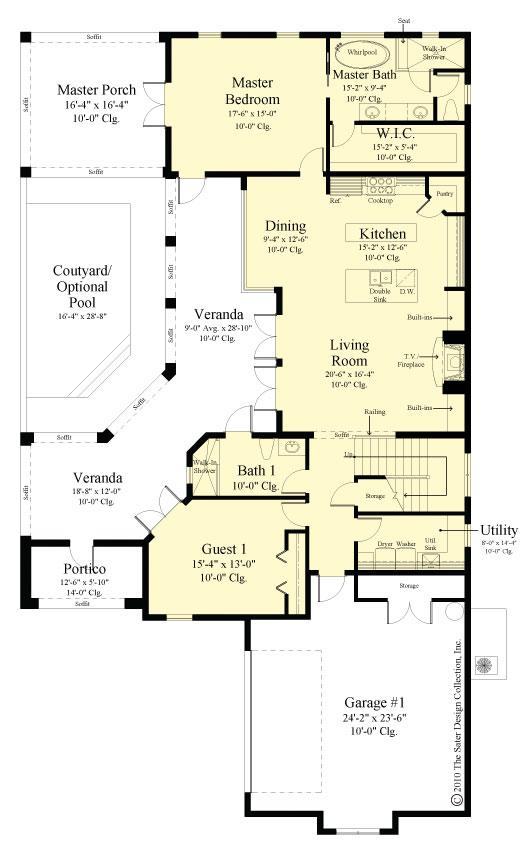

The Portico leads to the courtyard’sveranda. French doors in the living room welcome guests. The home offers a simple concept - the living room, kitchen and dining all share one open space. A fireplace warms the home and built-in shelves, perfect for books and knick knacks, create a cozy and homey feel. The kitchen has two islands for food prep and a corner, walk-in pantry. The dining area offers a mitered glass wall to enjoy the courtyard views and bring natural light in.

At the rear of the home is the master suite. The master bathroom offers a freestanding tub, walk-in shower, private water closet, dual vanities, and a walk-in closet. Doors from the master bedroom lead to the veranda and a more private master porch.

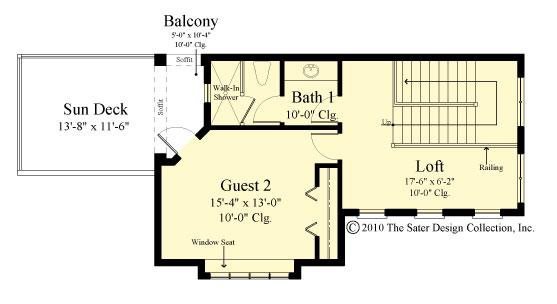

Towards the front of the home is the utility room, hall bath and first guest bedroom. The hall bath has a door to the veranda, perfect for pool days. The stairs lead to the second level where a small loft can be found. Also upstairs is another guest bedroom and bath. The second guest suite offers a charming window seat and private sun deck.

Are you interested in having a custom home plan designed just for you? Then please visit Sater Group, Inc. and learn how we can design something just for you.
